Mesin Las Pipa HDPE Manual SHDS 160 SHDS 200

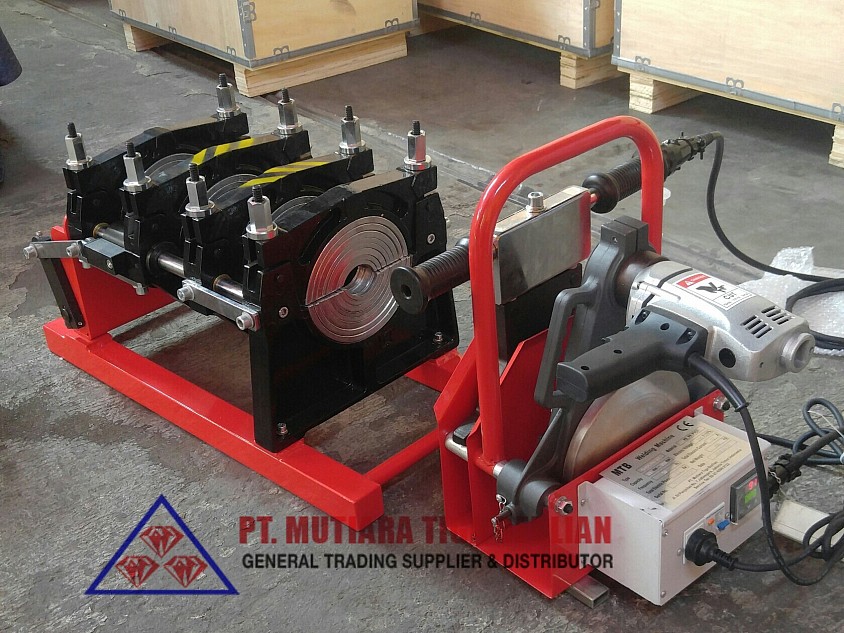

SHD 160 Manual 2 Clamp ( Hand Push )
SHD 160 Manual 2 Clamp ( Hand Push )

Mesin las pipa HDPE manual

Application and Features
- Suitable for butt welding of plastic pipes and fitting made of PE, PP, and PVDF material.
- Consist of basic frame, planing tool, heating plate, basket, and optional parts.
- Removable PTFE coated heating plate with separate temperature.
- Electric planing tool.
- Be made of lightweight and high strength material, simple structure, small, and delicate, user friendly.

Technical Parameters
- Pipe Size (mm) : 50, 63, 75, 90, 110, 125, 140, 160
- Heating plate Max. Temp : 270°
- Working voltage : 220VAC, 50Hz
- Heating plate power : 1KW
- Planing tool power : 0.7KW
- Total power : 1.7KW
- Weight : 46KG

SHD 160 Manual 4 Clamp ( Hand Push )
SHD 160 Manual 4 Clamp ( Hand Push )

Application and Features
- Suitable for butt welding of plastic pipes and fitting made of PE, PP, and PVDF material.
- Consist of basic frame, planing tool, heating plate, basket, and optional parts.
- Removable PTFE coated heating plate with separate temperature.
- Electric planing tool.
- Be made of lightweight and high strength material, simple structure, small, and delicate, user friendly.

Technical Parameters
- Pipe Size (mm) : 50, 63, 75, 90, 110, 125, 140, 160
- Heating plate Max. Temp : 270°
- Working voltage : 220VAC, 50Hz
- Heating plate power : 1KW
- Planing tool power : 0.7KW
- Total power : 1.7KW
- Weight : 46KG

SHD 200 Manual 4 Clamp ( Hand Wheel )
SHD 200 Manual 4 Clamp ( Hand Wheel )

Application and Features
- Suitable for butt welding of plastic pipes and fitting made of PE, PP, and PVDF material.
- Consist of basic frame, planing tool, heating plate, basket, and optional parts.
- Removable PTFE coated heating plate with separate temperature.
- Electric planing tool.
- Be made of lightweight and high strength material, simple structure, small, and delicate, user friendly.
- Use gearbox to apply pressure, more ergonomic.

Technical Parameters
- Pipe Size (mm) : 63, 75, 90, 110, 125, 140, 160, 180, 200
- Heating plate Max. Temp : 270°
- Working voltage : 220VAC, 50Hz
- Heating plate power : 1.5KW
- Planing tool power : 0.7KW
- Total power : 2.2KW
- Weight : 71KG
