Mesin Las Pipa HDPE | Hydraulic Butt Fusion Welding Machine

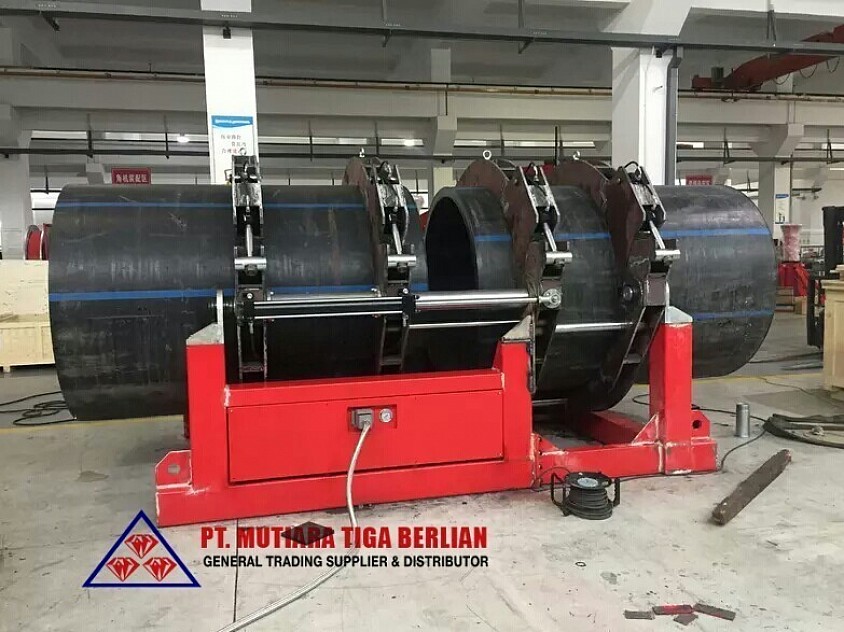

SHD 1600
SHD 1600

Mesin las pipa HDPE

Application and Features
- Suitable for butt welding of plastic pipes and fitting made of PE, PP, and PVDF material.

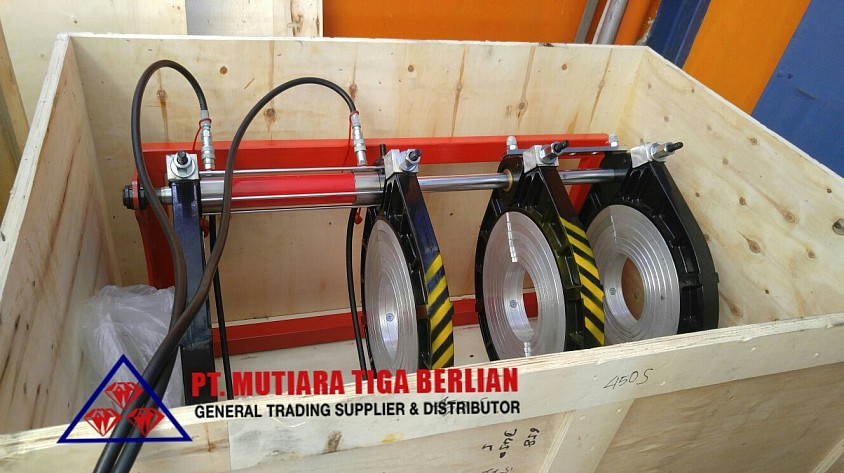

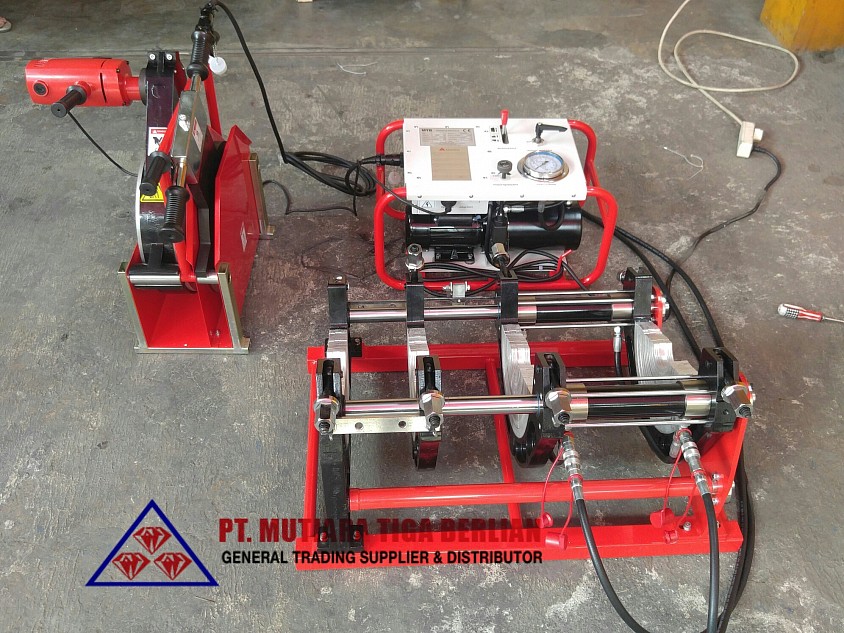

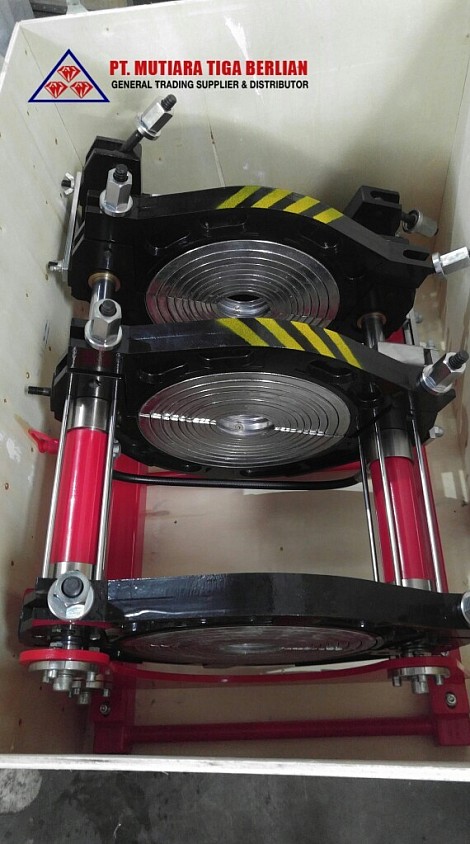

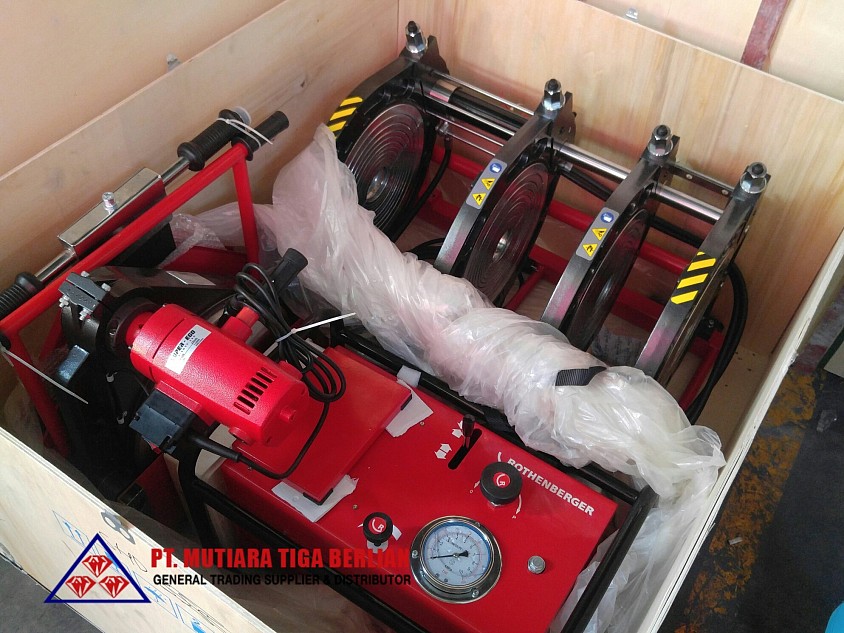

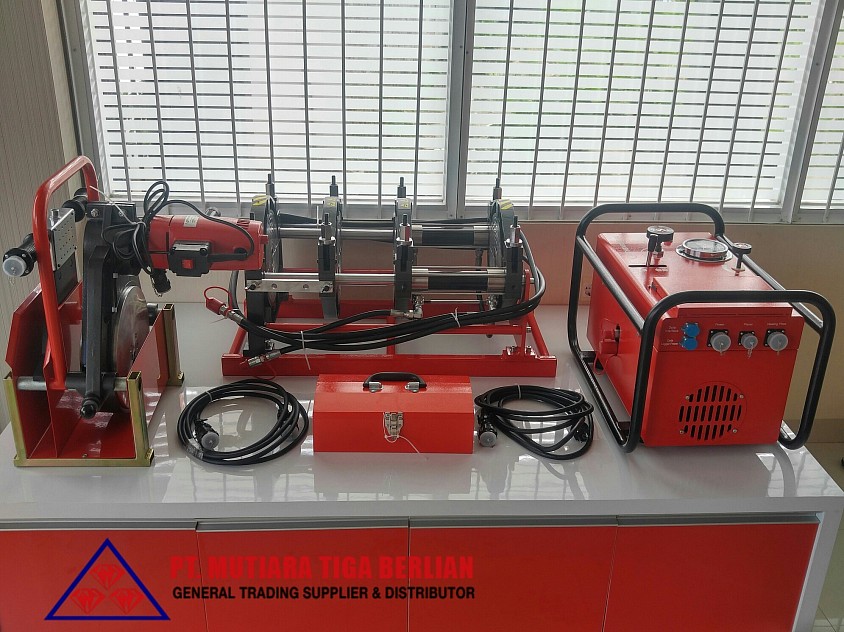

- Consist of basic frame, hydraulic unit, planing tool, heating plate, basket, and optional parts.

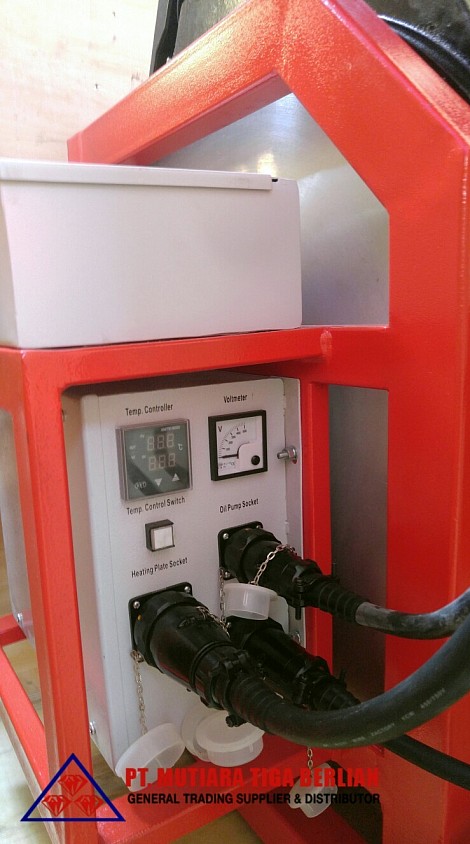

- Removable PTFE coated heating plate with high accurate temperature control system.

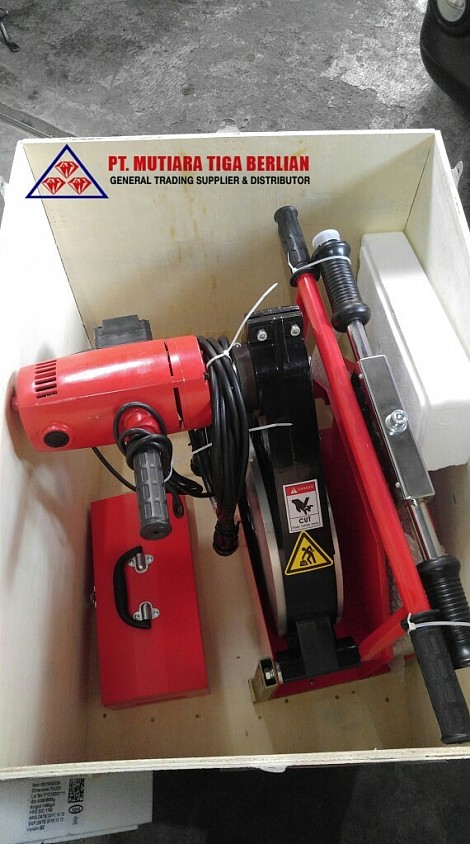

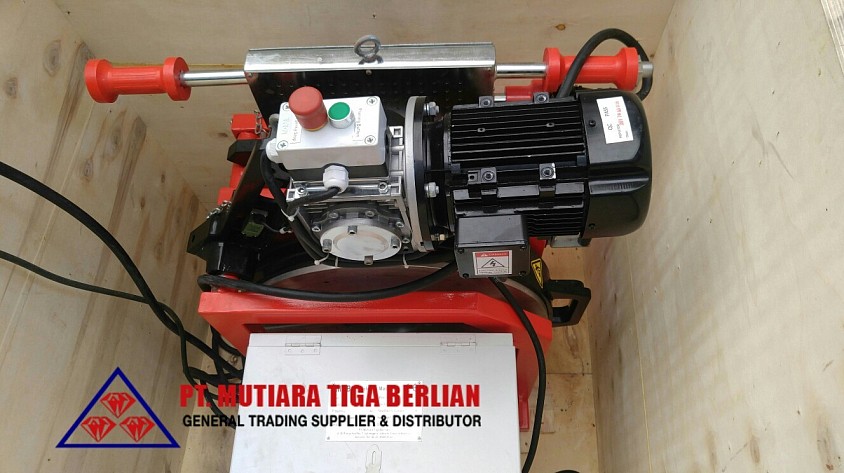

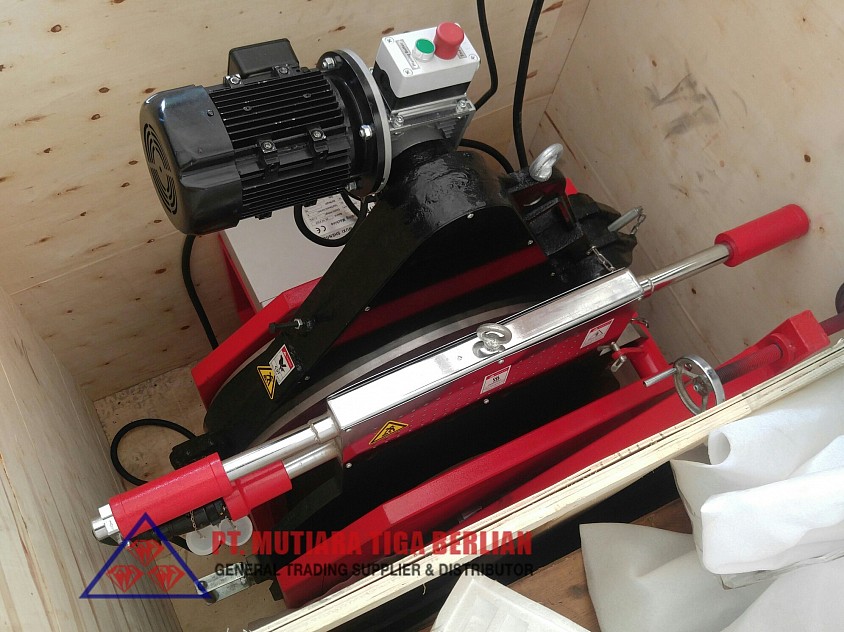

- Electric planing tool.
- Robust structure design, suitable for multi-jobsites.
- Changeable welding position enables to weld various fittings more easily.

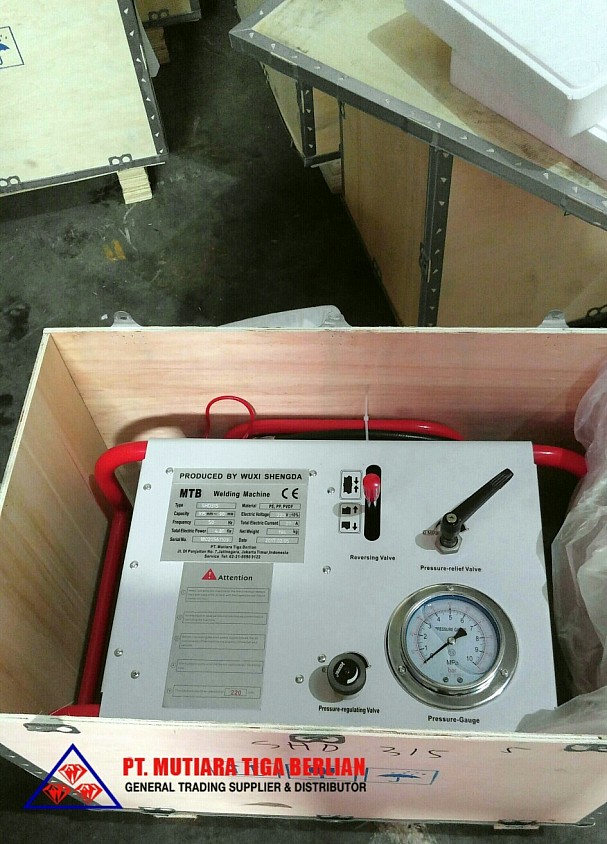

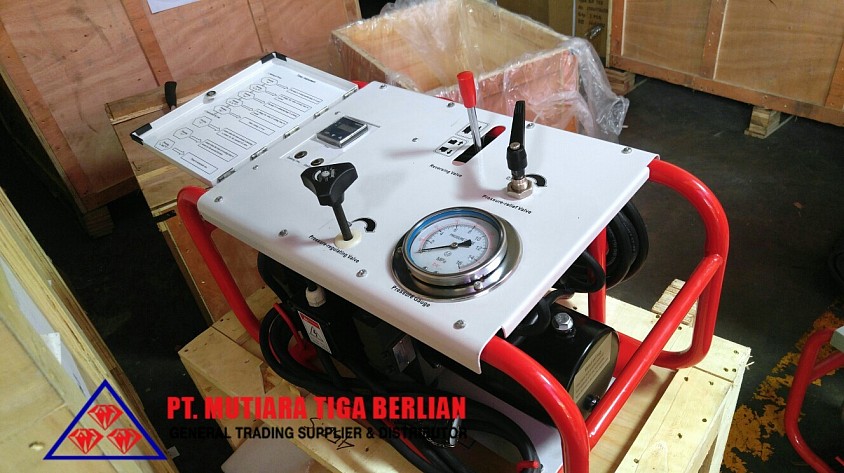

- High accurate and shockproof pressure meter.
- Separate two-channel timer records time in soaking and cooling phases.
- PLC control is an option

Technical Parameters
- Pipe Size (mm) : 1000, 1200, 1400, 1600
- Heating Plate Max. Temp : 270°
- Pressure Adjustable Ranges : 0-25Mpa
- Working Voltage : 380VAC, 3P+N+PE, 50Hz
- Heating Plate Power : 42KW
- Planing Tool Power : 7.5KW
- Hydraulic Unit Power : 3KW
- Total power : 59.7KW
- Weight : 5200KG
